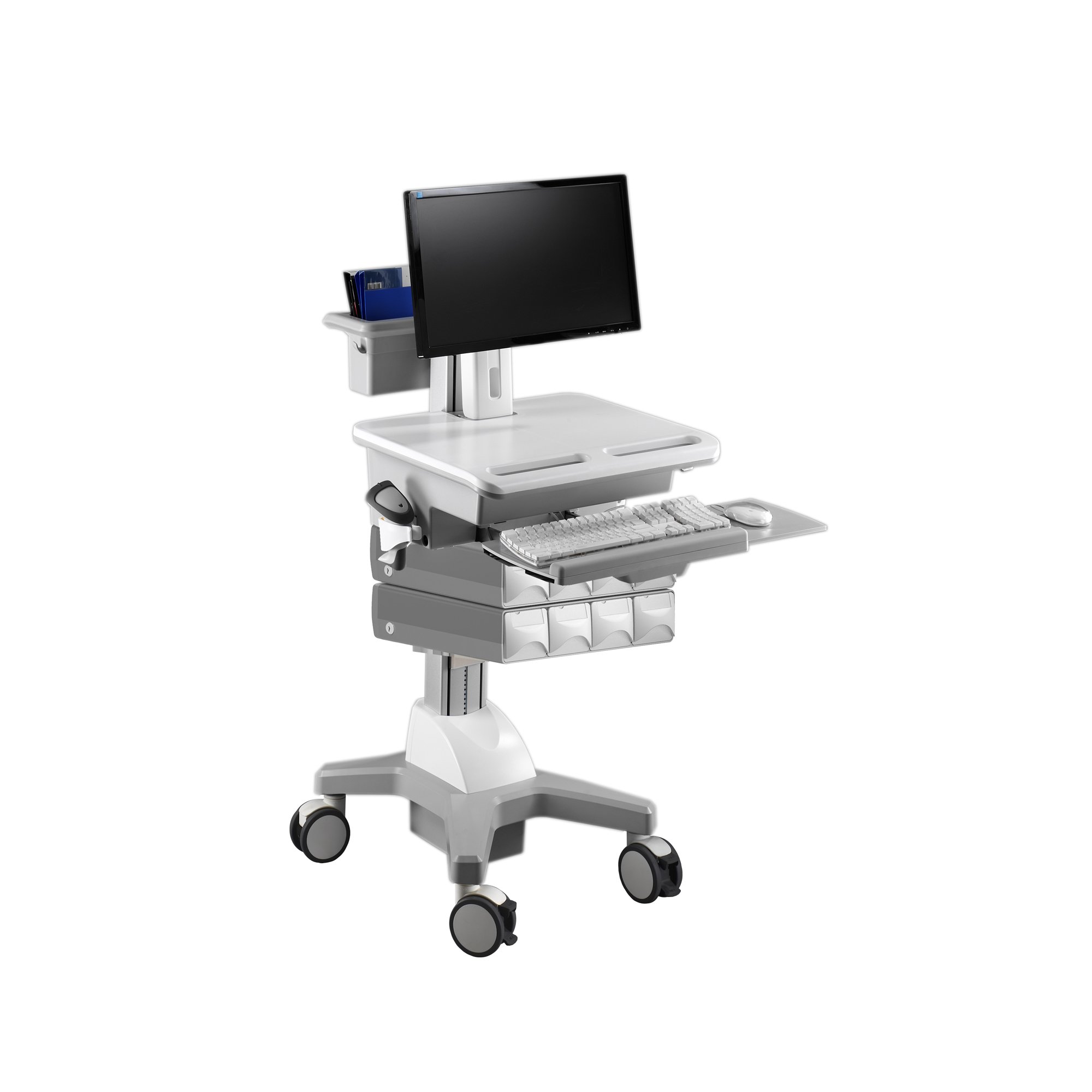

Computer Cart Single Monitor Multi Adjust
Model: MC1M
Model: MC1M
Model: MC1M
Amer Mounts is committed to providing a wide range of best-in-class solutions for the Healthcare Industry. This intuitive series has been designed for professional caregivers and helps establish smooth workflow within the workplace as well as making clinical documentation and medication dispensing easy.
This model is designed to support one display such as a monitor, tablet, or all-in-one PC. Individuals are able to adjust the height of the cart to a desirable position as well as adjust the screen to share your display with others. Additional storage is provided under the desk surface for smaller CPU units and additional attachments are provided for larger CPU units to be added onto the backside of the cart. A built-in fan is included under the desk surface providing ventilation to any CPU units kept inside the desk. A Keyboard tray, mouse tray, scanner holder, and smart wheel locks are also included. The large wheels at the bottom of the cart allow for easy cart movement and use push lock technology that lock with one push and unlock with another. Additional bins can be added such as garbage pails, storage bins, and medicine drawers.
-
Overall Load Capacity
15 kg (33 lbs)
Net Weight
31 kg (68.36 lbs)
Packaged Dimension
W1420xD715xH260 mm ( 55.91" X28.15" X10.24" )
Display System Hinge Module Swivel
N/A
Display System Hinge Module Tilt
-5° ~ +25°
Display System Hinge Module Pivot
360°
Display System Hinge Module User Torque Adjust
Available
Display System Display Support Mounting Pattern
100x100mm/75x75mm
Display System Display Support Display Type
Single Monitor
Display System Display Support Panel Size Support
≦24'' Suggested
Display System Display Support Max. Weight Load
8 kg (17.6 lbs)
Display System Height Adjust Range
130 mm (5.12" )
Display System Height Adjust Tension Torque Adjust
Yes
Display System Cable Management
Yes
Working Space Type Desk
Open Workspace
Working Space Dimension
517 x 261 mm ( 20.35" x10.28" )
Working Space Max. Load (including compartment loading)
7.5 kg ( 16.5 lbs )
Working Space Protection
Skidproof at edge
Yes
Working Space Protection Rear Handle
Yes
Working Space Protection Surface Coating
Yes
Storage & Inputs Compartment Max. Effective Dimension
W425 x D325 x H90 mm (16.73" x12.8" x3.54" )
Storage & Inputs Compartment Key Lock
Yes
Storage & Inputs Keyboard Tray Max. Effective Dimension
449 x 207 mm ( 17.68" X8.15" )
Storage & Inputs Keyboard Tray Max. Height from Desk Base
41.5 mm ( 1.63" )
Storage & Inputs Keyboard Tray Wrist Comfort
Yes
Storage & Inputs Keyboard Tray Tilt
Max. 12° (backward)
Storage & Inputs Mouse Pad Max. Working Dimension
217 x 213 mm ( 8.54" x 8.39" )
Storage & Inputs Mouse Pad Right-Left Slide in-&-out
Yes
Storage & Inputs Mouse Pad Mouse Holder
Yes
Storage & Inputs Scanner Holder
Yes
Storage & Inputs Storage Bin
Yes
Storage & Inputs External CPU Holder
Yes
Caster No.
4
Caster Locking/ Brake
Front 2
Caster Low Noise
Yes
Main Lift Handle
Yes
Main Lift Height Adjust Range
500 mm ( 19.7" )
Main Lift Tension Torque Adjust
Yes (Locking the Display & Main Lift are always essential before the cart setting for move.)
RoHS/REACH Compliance
Yes
UNSPSC:
42192404 -
