Dual Sit Stand Workstation Clamp Mount

US$0.00

Model: AMR2ACWS

Add To Cart

Model: AMR2ACWS

Model: AMR2ACWS

This Sit-Stand Desk Mount System provides an ergonomic solution allowing the user to change the way they work throughout the day. The spring arm provides the user the ability to move the workstation in various directions whether it is up and down or side to side. The workstation module includes a sturdy keyboard tray which can be adjusted to your ergonomic needs. The tray has a built-in mouse pad which can be slid into place on either side of the keyboard providing for mouse operation on the left or right side. There are 2 built in holders for a scanner and a mouse, allowing for organization of the workspace. The 2 flat panel display mounts can be individually rotated, pivoted, raised and lowered without changing the keyboard position. This allows for a wider range of motion to accommodate different work requirements.

Highlights of the AMR2ACWS premium features:

1. Provide up to 436mm (17.27″) of smooth vertical movement.
2. Torque Adjust for both the Spring arm and Display weight.
3. Free swing, tilt and Pivot handling on display.
4. Designed for maximum utilization with desk corners and rear mounting providing more space.

  • Material:
    Steel/Aluminum/Plastic

    Tilt(Hinge):
    0°-30°

    Tilt(Keyboard):
    0°-90°

    Rotate(Pivot):
    360°

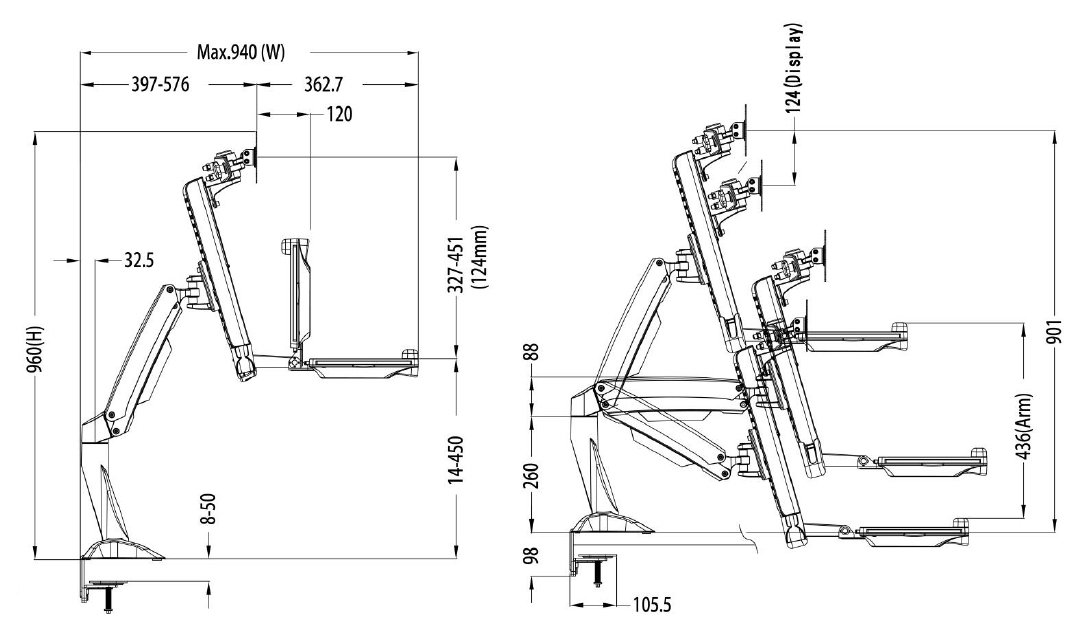

    Height Adjustment Range (Display/Arm):
    124mm(4.88”) / 436mm(17.27”)

    Tilt(Arm):
    -30° – +65°

    Mounting Pattern
    100×100/75x75mm

    Support Flat Panel Size:
    ≤24”

    Support Weight (Arm Total)
    2-6kg (4.4-13.2lbs)

    Support Weight (Keyboard)
    2.5kg (5.5lbs)

    Max.Working Space
    449*207mm for keyboard Tray
    (17.68” x 8.15”)

    UNSPSC:
    43212002

  • Spec Sheet
