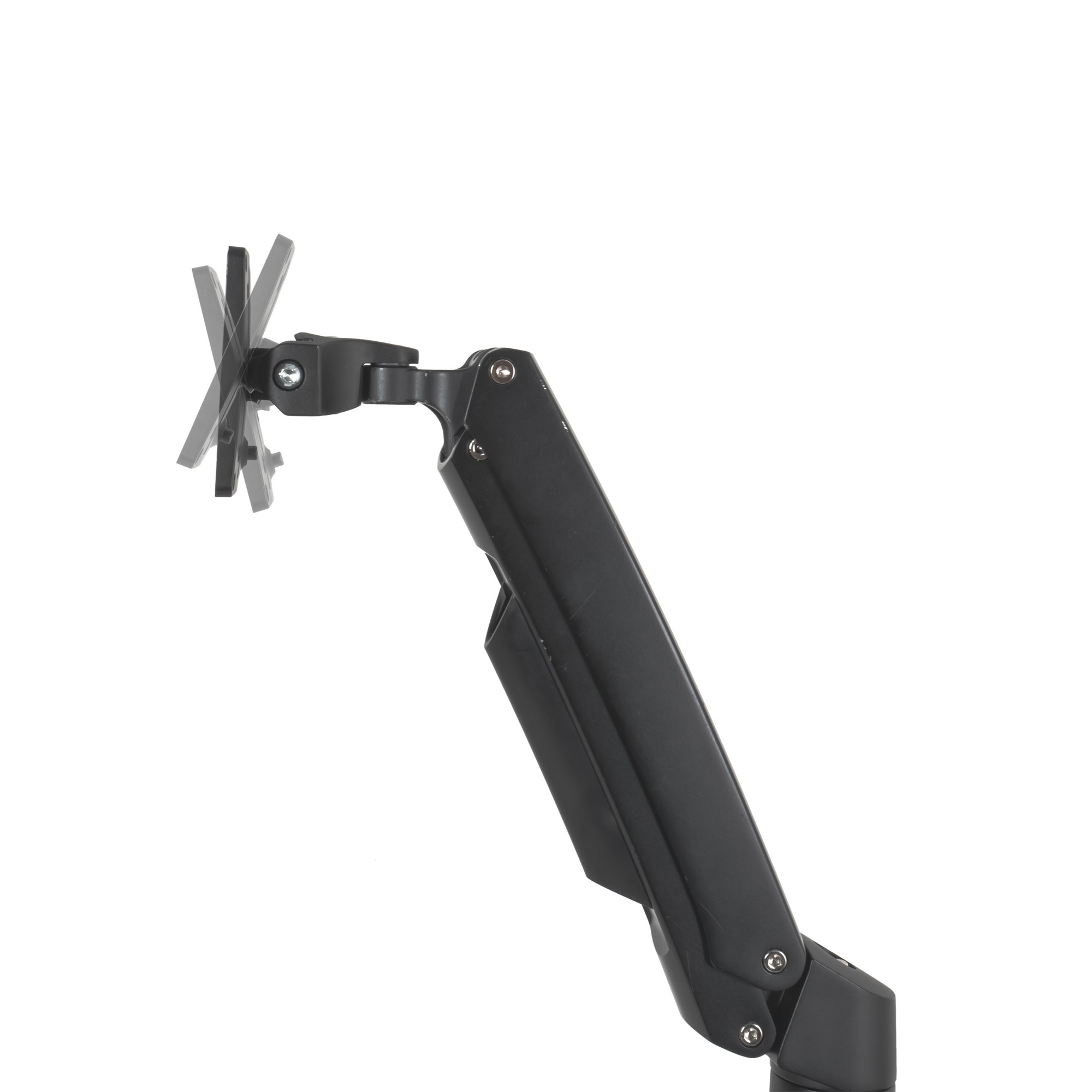

Amer Mounts’ AMR1UW is a heavy duty wall mount monitor arm designed for ultra wide / curved display monitor. The aluminum alloy can mount a single 12~19kg flat monitor and 7.5-14.5 kg curved/ultrawide monitor (curvature:≥1000R). It supports multi-angle adjustment, left and right angle can be adjusted by 180 degrees, tilting angle +/-20 degrees and up and down adjustable function of the arm. The VESA quick release function allows for quick removal and connection of displays.
-
Model:
AMR1UW
Net Weight:
5.81kg (12.81 lbs)
Dimension(W*H*D):
524 x 551 x 497 mm
(20.63" x 21.69" x19.56" )
Screw Type:
M4
Monitor Qty:
1
Material:
Steel/Aluminum Alloy/Plastic
Swivel:
+/-90°
Tilt:
+/-20°
Pivot:
360°
User Torque Adjust:
Available
Mounting Pattern:
100x100 mm / 75x75 mm
Flat Panel Size Support:
49”
Flat Panel Support Weight (Range):
12~19kg
(26.46~41.89 lbs)
Curved Panel Size Support:
49”
Curvature:
≥1000R
Curved Panel Support Weight (Range):
7.5-14.5 kg (16.53-31.97 lbs)
Height Adjustment Range (Arm):
436mm (17.17")
Tension Torque Adjust:
Yes
Tilt (Arm):
-30°(down) ~ +65°(up)
Extended Arm Provided:
1
Cable Management:
Yes
UNSPSC:
43212002 -
